Topcon OPUS B series

Topcon OPUS B2+s

Name: Topcon OPUS B2+s
Brand: Eltronic

The OPUS B2+s extends the B2 platform into a larger 7 inch display with soft keys and touch input. It suits equipment panels that need a larger operator view without moving to the heavier aluminium B-series units.

Discuss OPUS B2+s

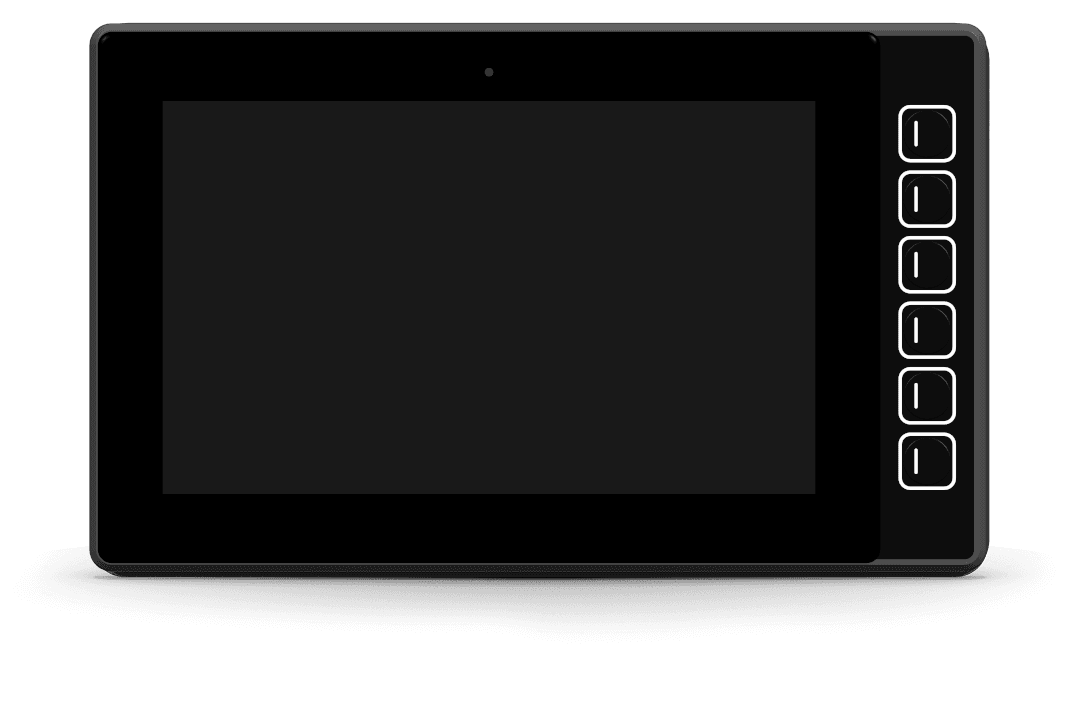

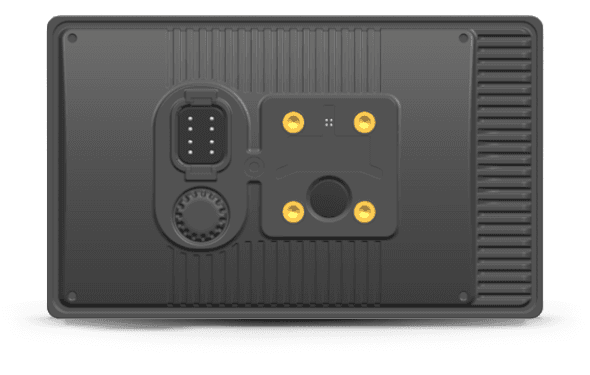

Topcon OPUS B2+s front view 1/4

HMIRugged HMI displays

Highlights

Display: 7 in, 15:9 TFT; 800 x 480 px, 900 cd/m2; Contrast ratio 1000:1
Operator controls: 6 Softkeys; Touchscreen
Interfaces: 2 x CAN-Bus ISO 11898; CAN specification 2.0 B active; 1 USB 2.0, Type C, high speed
Rugged rating: operating -30 to +75 deg C, storage -40 to +85 deg C, IP66/IP67 protection
Protocols: CANopen; CANfreestyle (CAN Layer 2); J1939

Technical data

Display: 7 in, 15:9 TFT; 800 x 480 px, 900 cd/m2; Contrast ratio 1000:1
User interface: 6 Softkeys; Touchscreen
Processor: 32-bit, 528 MHz; Freescale I.MX6ULL
Operating system: Linux Kernel 6.1.45 or higher
Memory: 256 MB DDR3 RAM; 3 GB eMMC Mass storage
Interfaces: 2 x CAN-Bus ISO 11898; CAN specification 2.0 B active; 1 USB 2.0, Type C, high speed
Supported protocols: CANopen; CANfreestyle (CAN Layer 2); J1939
Power supply: 9 to 36 V DC
Environmental conditions: operating -30 to +75 deg C; storage -40 to +85 deg C; Protection: IP66/IP67; Mechanical Shock: Level 2; Random Vibration: Level 2; Sinusoidal Vibration: Level 2
Housing: Orientation landscape or portrait; W 211 x H 129 x D 37.46 mm excl. connector and cables; Glass, PC/ABS; Autotex XEF200
Audio: Buzzer, approx. 90 dB(A) at 3500 Hz
Connectors: Main: Deutsch DT06-08SA 8 pin

Documents

Topcon OPUS B2+s basic datasheet Topcon OPUS B2+s full datasheet Topcon OPUS B2+s operating manual
