Topcon OPUS B series
Topcon OPUS B2e
The OPUS B2e is the touch-focused compact B2 unit for smaller control positions. It keeps the CAN-Bus, USB and rugged environmental profile needed for mobile machinery and embedded equipment displays.
Topcon OPUS B2e front view 1/4
HMIRugged HMI displays
Highlights
- Display: 4.3 in, 15:9 TFT; 480 x 272 px, 800 cd/m2; Contrast ratio 800:1
- Operator controls: Touchscreen
- Interfaces: 2 x CAN-Bus ISO 11898; CAN specification 2.0 B active; 1 USB 2.0, Type C, high speed
- Rugged rating: operating -30 to +75 deg C, storage -40 to +85 deg C, IP66/IP67 protection
- Protocols: CANopen; CANfreestyle (CAN Layer 2); J1939
Technical data
- Display
- 4.3 in, 15:9 TFT; 480 x 272 px, 800 cd/m2; Contrast ratio 800:1
- User interface
- Touchscreen
- Processor
- 32-bit, 528 MHz; Freescale I.MX6ULL
- Operating system
- Linux Kernel 6.1.45 or higher
- Memory
- 256 MB DDR3 RAM; 3 GB eMMC Mass storage
- Interfaces
- 2 x CAN-Bus ISO 11898; CAN specification 2.0 B active; 1 USB 2.0, Type C, high speed
- Supported protocols
- CANopen; CANfreestyle (CAN Layer 2); J1939
- Power supply
- 9 to 36 V DC
- Environmental conditions
- operating -30 to +75 deg C; storage -40 to +85 deg C; Protection: IP66/IP67; Mechanical Shock: Level 2; Random Vibration: Level 2; Sinusoidal Vibration: Level 2
- Housing
- Orientation landscape or portrait; W 122.7 x H 89 x D 36 mm excl. connector and cables; Glass, PC/ABS; Autotex XEF200
- Audio
- Buzzer, approx. 90 dB(A) at 3500 Hz
- Connectors

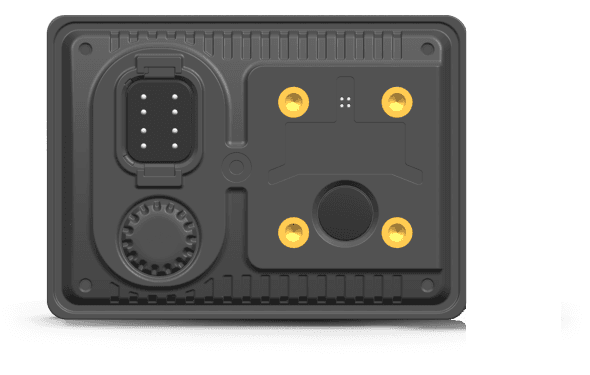

- Main: Deutsch DT06-08SA 8 pin
