Topcon OPUS C Series

The OPUS C Series gives one HMI platform across multiple screen sizes for projects that need a consistent display family. It is suited to more advanced interfaces where processor headroom, high-resolution displays and modern connectivity are important.

Discuss OPUS C Series

Topcon OPUS C Series front view 1/4

HMIRugged HMI displays

Highlights

  • Display: C7, C10, C12 and C15 touchscreen formats
  • Operator controls: Touchscreen
  • Interfaces: 3 x CAN-Bus ISO 11898; CAN specification 2.0 B active; 2 x RS232 (only RxD, TxD, GND); 1 x USB 3 Type C super speed, 1.5 Gbit/s...
  • Rugged rating: operating -30 to +75 deg C, storage -30 to +85 deg C, IP66 protection
  • Protocols: CANopen; CANfreestyle; J1939

Technical data

Display
C7 - 7 in, 15:9 TFT; 800 x 480 px, 800 cd/m2; Contrast ratio 1000:1; C10 - 10.1 in, 16:10 TFT; 1280 x 800 px, 900 cd/m2; Contrast ratio 800:1; C12 - 12.1 in, 16:10 TFT; 1280 x 800 px, 1100 cd/m2; Contrast ratio 1000:1; C15 - 15 in, 24:9 TFT; 1920 x 720 px, 900 cd/m2; Contrast ratio 1300:1
User interface
Touchscreen
Processor
32-bit, 1600 MHz; Freescale I.MX8 QuadPlus
Operating system
Linux Kernel 6.1.1 or higher
Memory
4 GB DDR4 RAM; 10 GB pSCL
Interfaces
3 x CAN-Bus ISO 11898; CAN specification 2.0 B active; 2 x RS232 (only RxD, TxD, GND); 1 x USB 3 Type C super speed, 1.5 Gbit/s; 1 x USB 2 Type A high speed, 480 Mbit/s; 2 x Automotive Ethernet 10/100 Mbit/s Base T1; 4 x Digital/Frequency Inputs; 1 x Analog Input; 3 x Digital Output Open Drain; 1 x Digital Frequency Output Open Drain; 1 x Digital Output High-Side I max 500 mA
Supported protocols
CANopen; CANfreestyle; J1939
Power supply
9 to 36 V DC
Environmental conditions
operating -30 to +75 deg C; storage -30 to +85 deg C; Protection: IP66; Mechanical Shock: Level 2; Random Vibration: Level 2; Sinusoidal Vibration: Level 2
Housing
Orientation landscape or portrait; C7 - W 200.6 x H 137.6 x D 41.5 mm excl. connector and cables; C10 - W 248 x H 179.8 x D 50 mm excl. connector and cables; C12 - W 299 x H 210 x D 53.5 mm excl. connector and cables; C15 - W 388.5 x H 188.3 x D 50 mm excl. connector and cables; Aluminium die cast, powder coated
Sensors and indicators
Light sensor; Proximity Sensor; Acceleration Sensor; Multicolor-LED
Audio
Microphone; Speaker, approx. 90 dB(A)

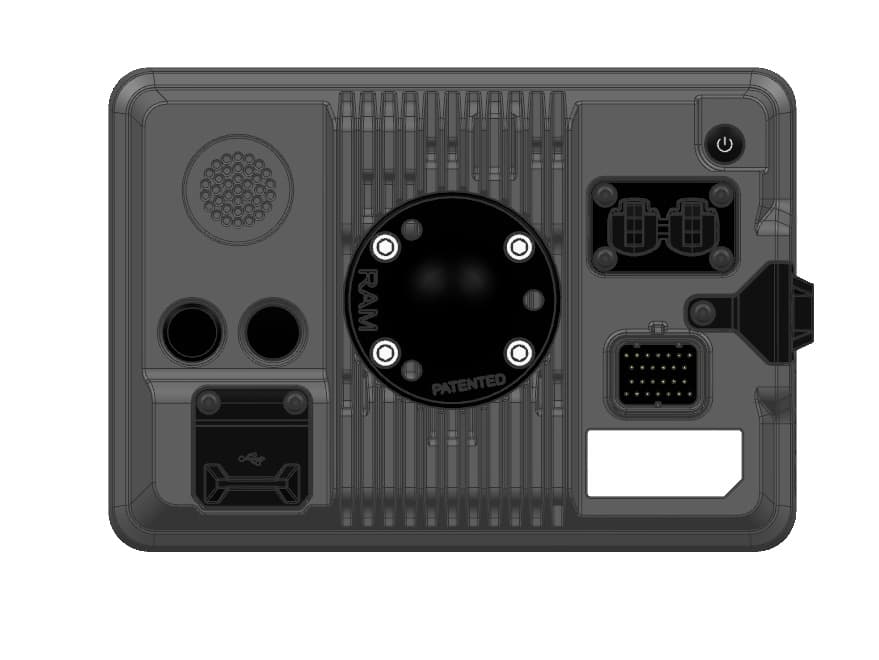

Connectors
Main: AMP Seal, 26 pin; Ethernet: M12 round, 4 pole, D-coded
